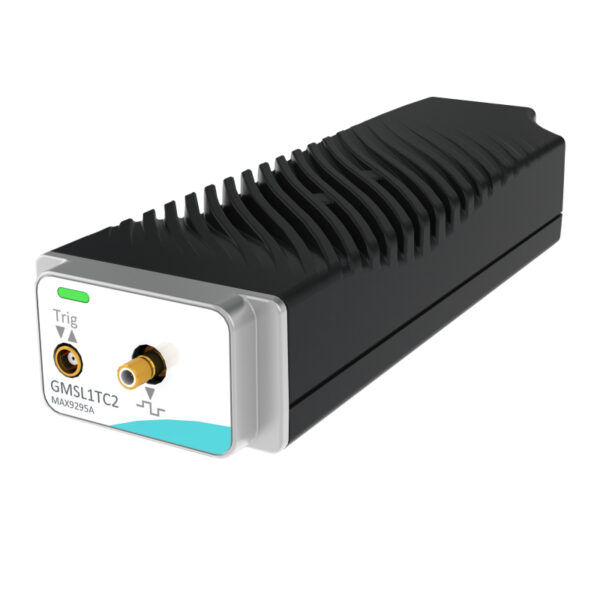

GMSL1TC2 | GMSL1 Multimedia Stream Programmable Generator
- MAX9295A serializer over coaxial
- Fully supported chipset functions
- Programmable frame size, synchs & porches
- Customizable video frame content from image files
- Still frame and circular buffer movie modes
- Real-time adjustable overlays
- RGB and YCbCr selectable color spaces
- MIPI D-PHY℠ CSI-2® support
- Optional arbitrary audio generator
- Bidirectional sideband communication support
- Programmable I/O trigger
- Description
- Additional information
- Documentation
- CASE STUDIES
Description
The Flexmedia XM GMSL1TC2 module is a versatile video generator based on the Analog Devices GMSL1 serializer.
It can be used to generate and transmit multimedia digital streams to multimedia digital receivers compatible with MAX9295A serializer.

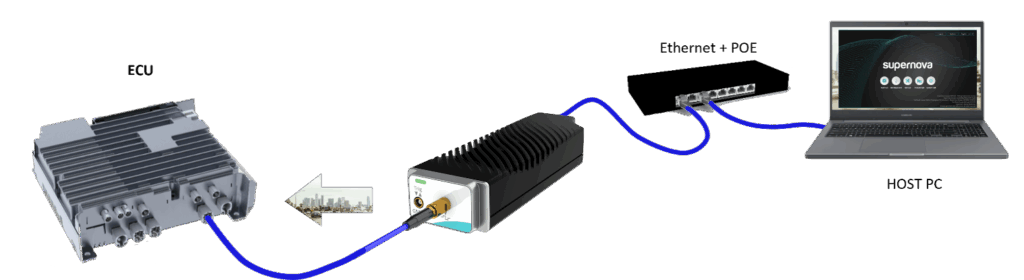

The GMSL1TC2 module is ideally suited for test applications in the automotive industry:
- Multi-camera driver assistance systems
- Advanced Driver Assistance Systems (ADAS): LiDAR and RADAR
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |
*Please note that the Graphical User Interface (GUI) is meant to have a quick hands-on experience of Flexmedia XM module main functions. Full chipset functionality access is guaranteed through Command Line Interface (CLI) programming as well as specific embedded scripting.
Flexmedia XM Video Generators and Analyzers – Getting Started
1 file(s) 462.98 KB
Login is required to access this page
Flexmedia XM GMSL1 Generators – User Manual
1 file(s) 781.11 KB
Login is required to access this page
