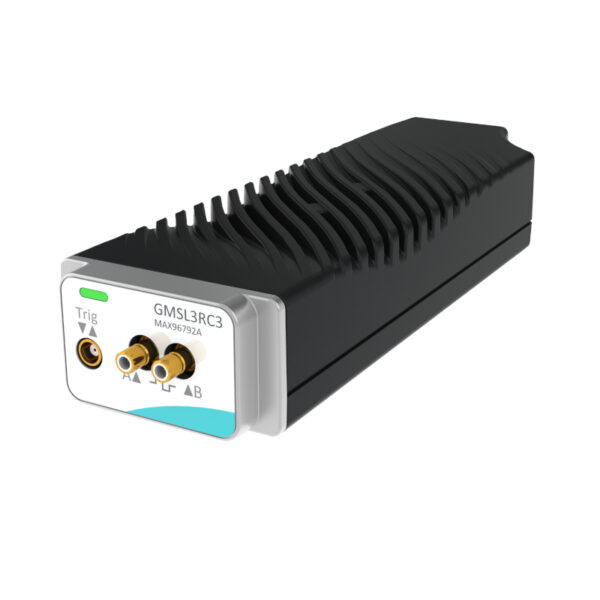

GMSL3RC3 | GMSL3 Multimedia Stream Real-Time Analyzer
- MAX96792A deserializer over coaxial
- Fully supported chipset functions
- Video timing detection
- Burst capable video frame grabbing
- Real-time video analyzer: BER/PER/PSN
- Multiple & simultaneous ROI analysis
- RGB and YCbCr selectable color spaces
- 4:2:2 chroma sub-sampling and ITU656 decoder
- Optional audio stream capture
- Bidirectional sideband communication support
- Programmable I/O trigger
- Description
- Additional information
- Documentation

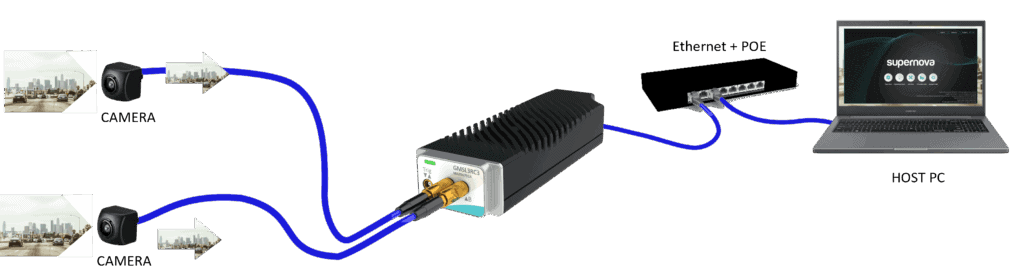

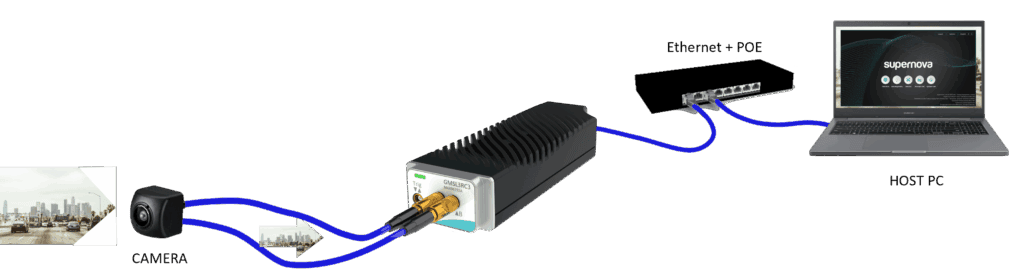

- USE CASE
Description
The Flexmedia XM GMSL3RC3 module is a versatile video frame grabber and real-time frame analyzer.
It can then be used to receive and analyze multimedia streams coming from multimedia digital stream sources compatible with MAX96792A deserializer.
The GMSL3RC3 module is ideally suited for test applications in the automotive industry:
- Automotive Infotainment
- Multi-camera driver assistance systems
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |
*Please note that the Graphical User Interface (GUI) is meant to have a quick hands-on experience of Flexmedia XM module main functions. Full chipset functionality access is guaranteed through Command Line Interface (CLI) programming as well as specific embedded scripting.
Flexmedia XM Video Generators and Analyzers – Getting Started
1 file(s) 462.98 KB
