Q2 2025 Product Update – New Flexmedia XM Modules Released!
Introducing: A2BFRTX5, QCSG2TC1 and EMC10GT1
We’re excited to announce the release of three new Flexmedia XM modules in Q2 2025, each designed with advanced features to support a wide range of test and measurement applications.
Here’s a closer look at what makes them stand out:

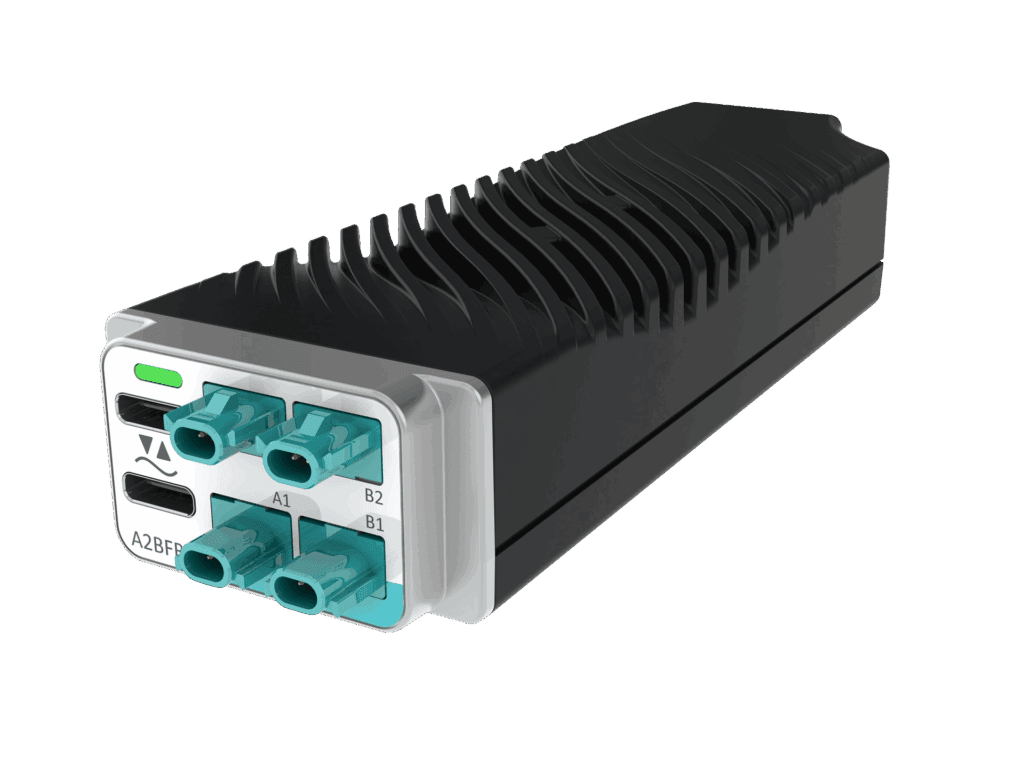

A2BFRTX5: Dual ADI A2B Generator/Analyzer
One among the first full-standard A2B® specialty test modules with dual independent interfaces (M+S, M+M, S+S), up to 32 audio slots, 48 kHz sampling, and integrated analog/digital processing.
Key Features:
- Dual independent Next Gen A2B® interfaces (M+S, M+M, S+S) on MTD® connectors
- Support for up to 32 audio slots (upstream/downstream)
- High-quality audio processing: 48 kHz, 8–32 bits/sample
- Integrated analog and digital I/O (ADC, DAC, .wav generation, stream measurement)
- Phantom power injection and monitoring
Typical Applications:
- Testing of audio & infotainment devices for automotive

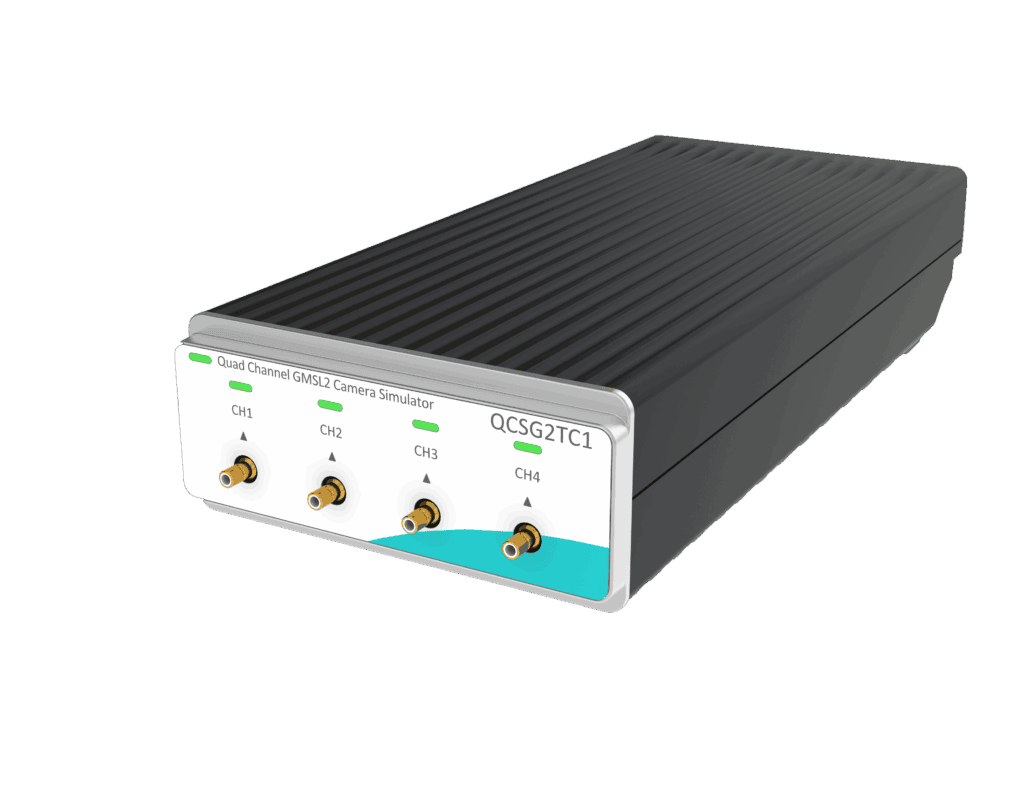

QCSG2TC1: Quad Channel GMSL2 Camera Simulator
Featuring the MAX96717 serializer, this 4-channel video generator is designed for validation and test of next-generation automotive camera systems.
Highlights:
- 4 independent coaxial video channels using MAX96717 GMSL2 serializer
- Programmable phantom voltage/load: up to 20VDC and 3W per channel
- Video output: internal serializer pattern generator only
- Built-in serializer pattern generator for video output
Typical Applications:
- Simplified video generator to test Multi-Camera ECUs
- Designed for burn-in and stress test

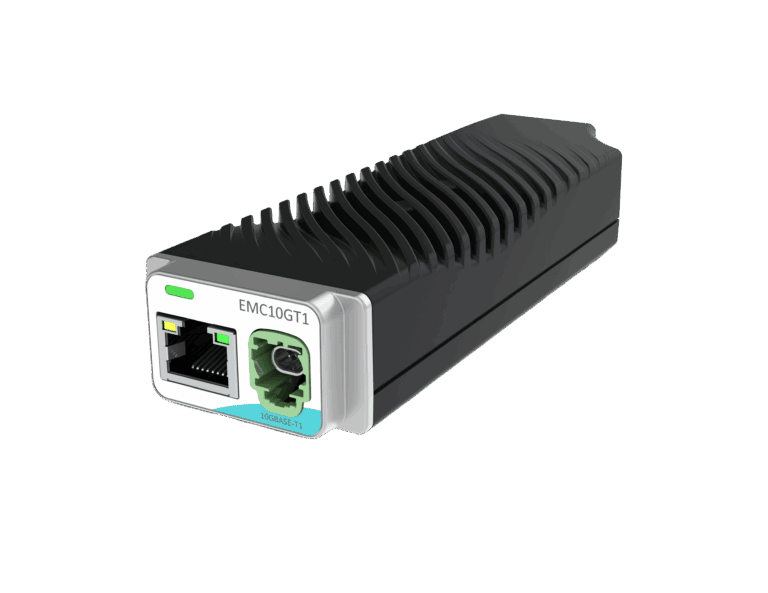

EMC10GT1: Ethernet to 2.5/5/10GBASE-T1 Media Converter
Designed for PC-based control of automotive devices, it’s the latest Ethernet Media Converter for 2.5/5/10GBASE-T1 MultiGigabit Automotive Ethernet applications. It converts the Ethernet physical layer from MultiGBASE-T1 to MultiGBASE-T. This is needed to directly connect a PC equipped with the standard 8-wire Ethernet to an automotiveECU or Switch which use the 2-wire version of Ethernet specific to In-Vehicle Networks. It is ideal for testing and validation of infotainment, ADAS, TCUs, audio amplifiers, and more.
Features:
- Media Converter from Ethernet to BASE-T1
- PC control of Automotive devices
- Configurable IEEE 2.5G/5G/10GBASE-T1 modes
- Configurable PHY registers via Ethernet control
- H-MTD® connector for IEEE 10GBASE-T1
Typical Applications:
- Automotive Ethernet devices control
- Infotainment, ADAS, TCUs, Audio AMPs and more
Stay tuned for more updates and in-depth technical insights in our upcoming releases. For datasheets or evaluation requests, contact our technical support team or visit our catalog online.
