Q1 2025 Product Update – New Flexmedia XM Modules Released!

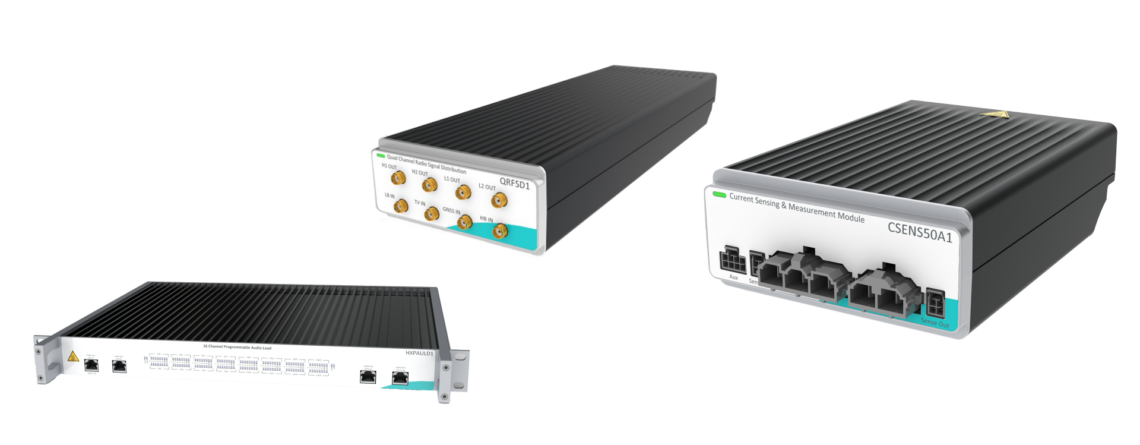

Introducing: CSENS50A1, HXPAULD1, and QRFSD1
We’re excited to announce the release of three new Flexmedia XM modules in Q1 2025, each designed with advanced features to support a wide range of test and measurement applications. Here’s a closer look at what makes them stand out:

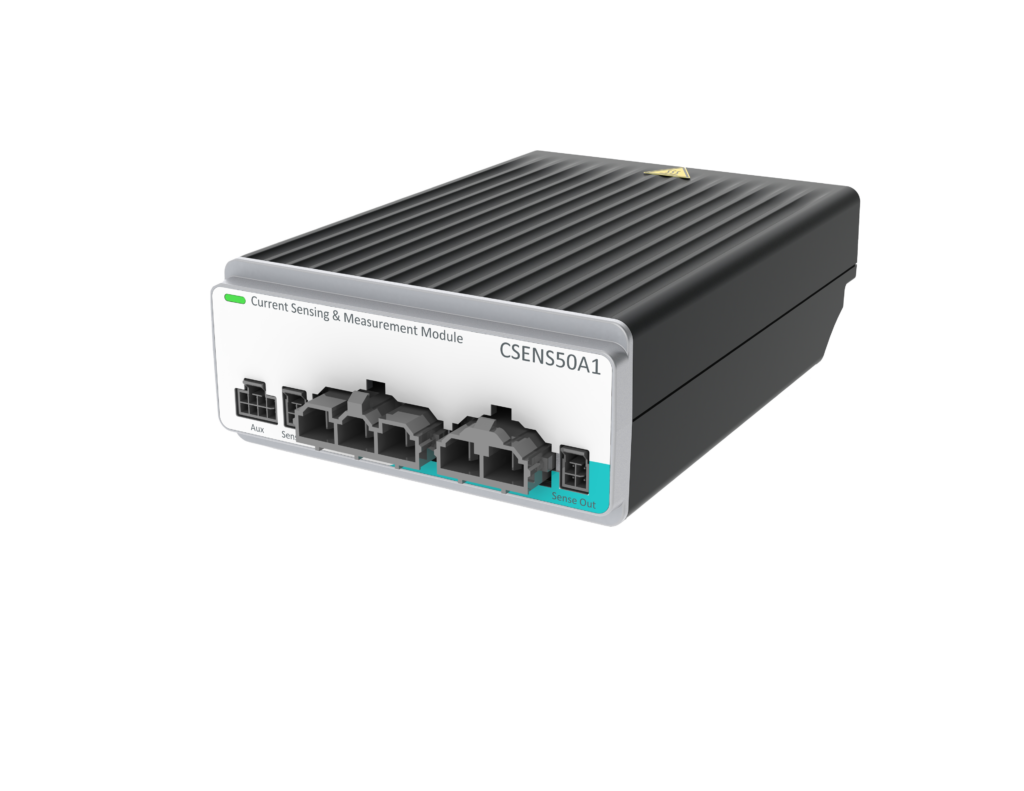

CSENS50A1: Current Sensing & Measurement Module
Designed for precision current measurement, the CSENS50A1 is the evolution of CSENS25A2 to measure current flow up to 50A and features four measurement scales: 50A, 2.5A, 25mA, 250µA for versatile test configurations.
Key Features:
- DC power switching and current sensing
- Voltage range: 0.5 – 32V
- Continuous current: 30A
- Peak current (max 1 hour, Tamb=40°C): 50A
- Built-in overload and thermal protection
Typical Applications:
- Standby and nominal current/voltage measurements

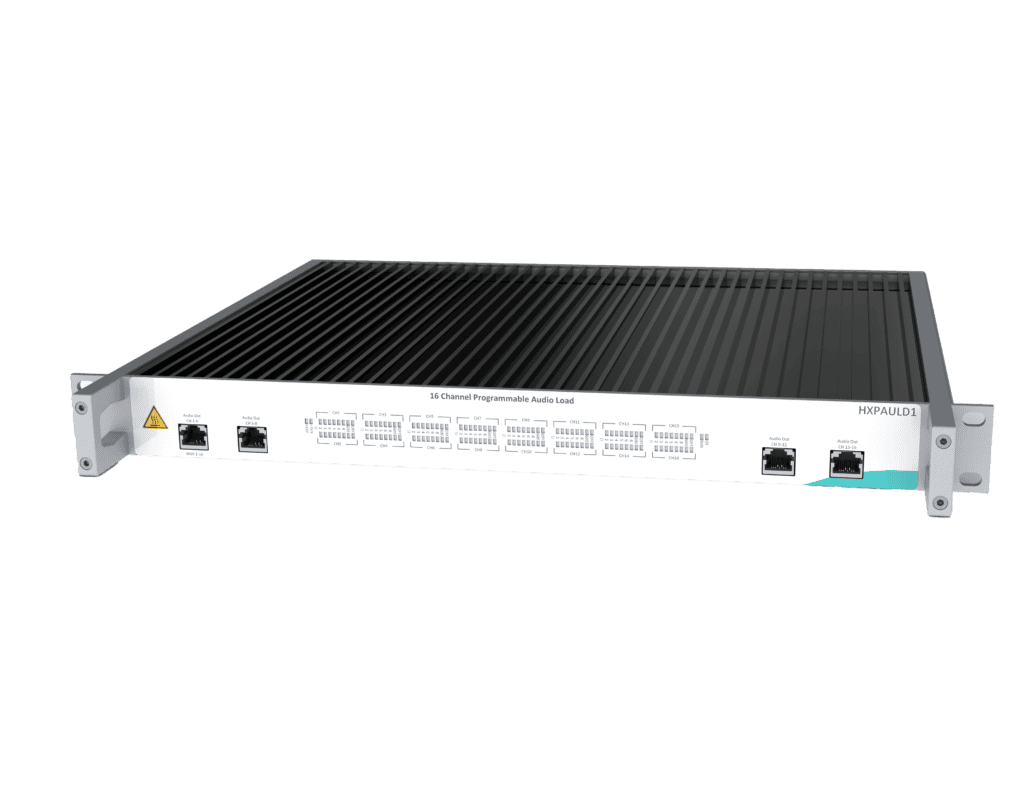

HXPAULD1: 16 Channell Programmable Audio Load
This powerful module provides 16 independent audio load channels, offering unmatched flexibility in audio test environments.
Highlights:
- Seamless AudioJ-Link integration with Flexmedia XM audio analyzers
- Supports both parallel and multiplexed measurements
- 19′ rack, 1U form factor
- Optimized for pairing with the QAUAN2 Quad-Channel Analog Audio Analyzer
Typical Applications:
- Test of Audio Amplifiers

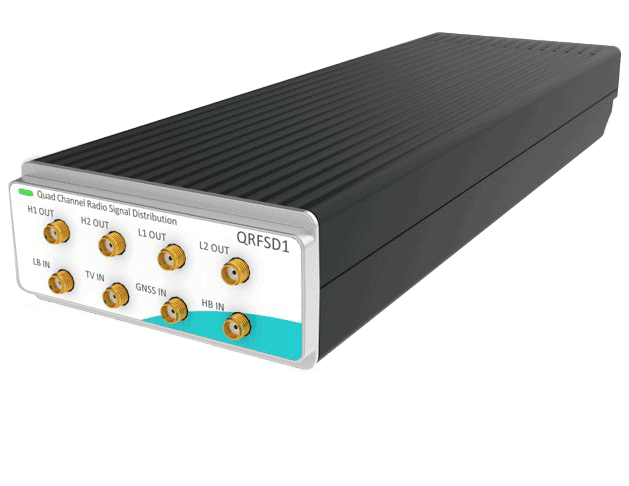

QRFSD1: Quad RF Programmable Attenuator & Bias Loading
Purpose-built for radio signal distribution and output level control, the QRFSD1 module brings advanced RF performance and streamlined control.
Features:
- Quad-channel RF attenuation and bias loading
- independent RF input/output channels: AM/FM/DAB: dummy antenna option; TV/GNSS/SDARS
- Quad-XM size: 4x single Flexmedia XM module slots
- Gigabit Ethernet interface with PoE support for easy deployment
Stay tuned for more updates and in-depth technical insights in our upcoming releases. For datasheets or evaluation requests, contact our technical support team or visit our website
