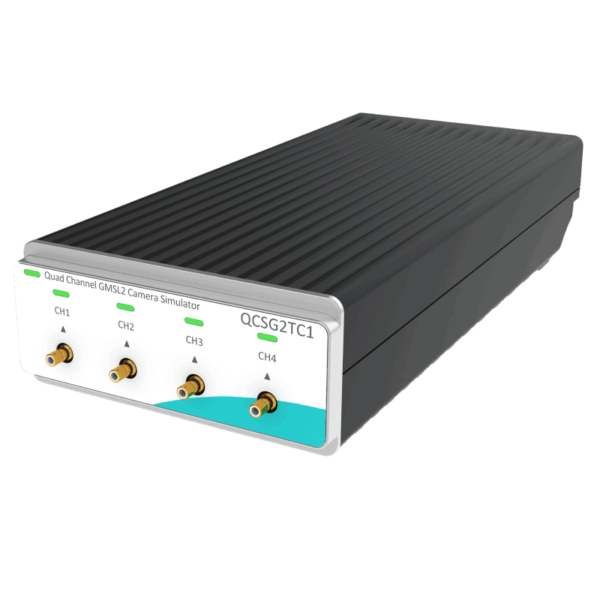

QCSG2TC1 | Quad Channel GMSL2 Camera Simulator
- MAX96717 serializer over coaxial
- 4 independent channels
- Phantom voltage measure/load
- Video output: internal serializer pattern generator only
- GPIO support
- Bidirectional sideband communication support
- Quad-XM size: 4x single Flexmedia XM module slots
- Programmable I/O trigger
- Description
- Additional information
- DOCUMENTATIONS

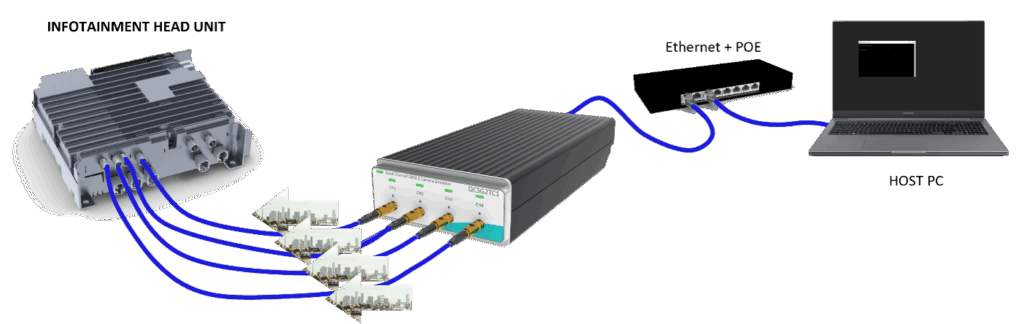

- USE CASE
Description
The Flexmedia XM QCSG2TC1 module is a versatile video generator based on the Analog Devices GMSL2 serializer.
It can be used to generate and transmit multimedia digital streams to multimedia digital receivers compatible with MAX96717 serializer.
The QCSG2TC1 module is ideally suited for test applications in the automotive industry:
• Multi-camera driver assistance systems
• Designed for burn-in and stress test
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |
Flexmedia XM Quad Channel GMSL2 Camera Simulators – User Manual
1 file(s) 984.36 KB
Login is required to access this page
Flexmedia XM Quad Channel GMSL2 Camera Simulators – CLI
1 file(s) 719.33 KB
Login is required to access this page
Flexmedia XM Video Generators and Analyzers – Getting Started
1 file(s) 462.98 KB
Login is required to access this page
