A2BFRTX5 | Dual ADI Next Generation A2B® Audio Generator/Analyzer
• Two ADI Next Gen A2B® interfaces independently configured as Master or Slave
• Up to 32 downstream and 32 upstream slots
• 7 independent internal and external audio sources
✓ two independent audio sources from file
✓ quad internal programmable sinusoidal tones generation
• 4 independent audio sinks
• Network configuration import from .csv file (SigmaStudio® compatible)
• Fully programmable association between audio sources and slot position
• Fully programmable association between received slots and audio sinks
• Sampling rate: 48 kHz
• Embedded audio measurement processing (f0, P-P, RMS, THD, SINAD, time/FFT display)
• Waveform samples transfer to host, on host request
• Analog audio input/output (mono ADC and stereo DAC): real-time conversion from analog audio to Next Gen A2B® (1 channel) and Next Gen A2B® to analog audio (2 channels)
• Analog earphone-compatible USB type-C I/O connectors
• Bidirectional sideband communication: embedded I2C & SPI (no Ethernet over SPI)
• Phantom power for connected Slave devices
• Load simulation for Slave interface
• Simple OS-agnostic command line interface
• Gigabit Ethernet control interface
• Configurable IP address (static or DHCP assigned)
• Power-over-Ethernet (PoE) power supply
- Description
- Additional information
- DOCUMENTATION

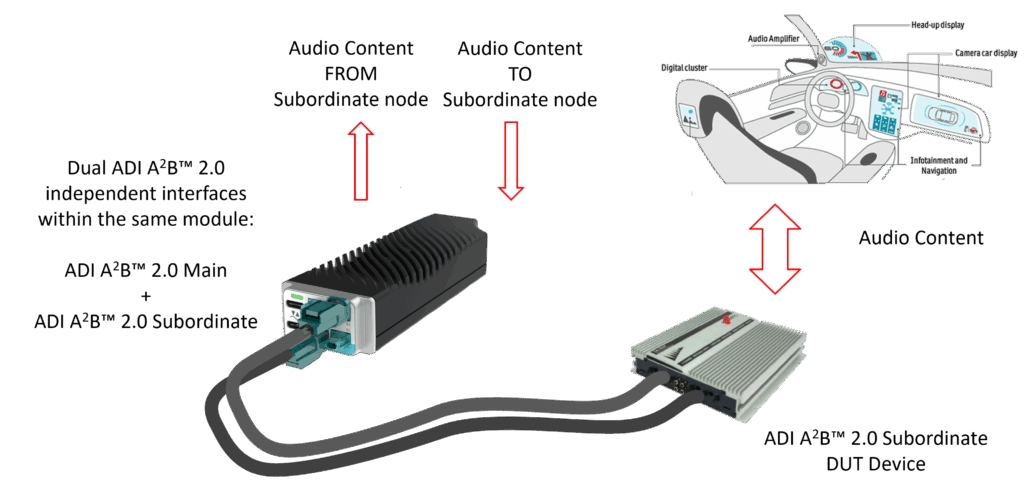

- USE CASE
Description
The Flexmedia XM A2BFRTX5module is a Dual ADI Next Generation A2B® Audio Generator/Analyzer, specifically designed to analyze and generate audio data, according to
specifications, for validation, R&D and production test activity.
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |
*Please note that the Graphical User Interface (GUI) is meant to have a quick hands-on experience of Flexmedia XM module main functions. Full chipset functionality access is guaranteed through Command Line Interface (CLI) programming as well as specific embedded scripting.
Flexmedia XM ADI A2B Generators and Analyzers – CLI
