A2BFRTX3 | Dual ADI A2B® Audio Generator/Analyzer
• Each AD2433 interface can be independently configured as Master or Slave
• Up to 32 downstream and 32 upstream slots
• 7 independent audio sources
• 4 independent audio sinks
• Fully programmable association between audio sources and slot position
• Fully programmable association between received slots and audio sinks
• Programmable sampling rates: 44.1 kHz, 48 kHz
• Internal programmable sinusoidal tones generation
• Internal waveform analysis engine
• Two independent audio sources from file
• Analog audio input/output (mono ADC and stereo DAC)
• Phantom power for connected Slave devices
• Load simulation for Slave interface
• Simple OS-agnostic command line interface
• Gigabit Ethernet control interface
• Configurable IP address (static or DHCP assigned)
•Power-over-Ethernet (PoE) power supply
- Description
- Additional information
- DOCUMENTATION

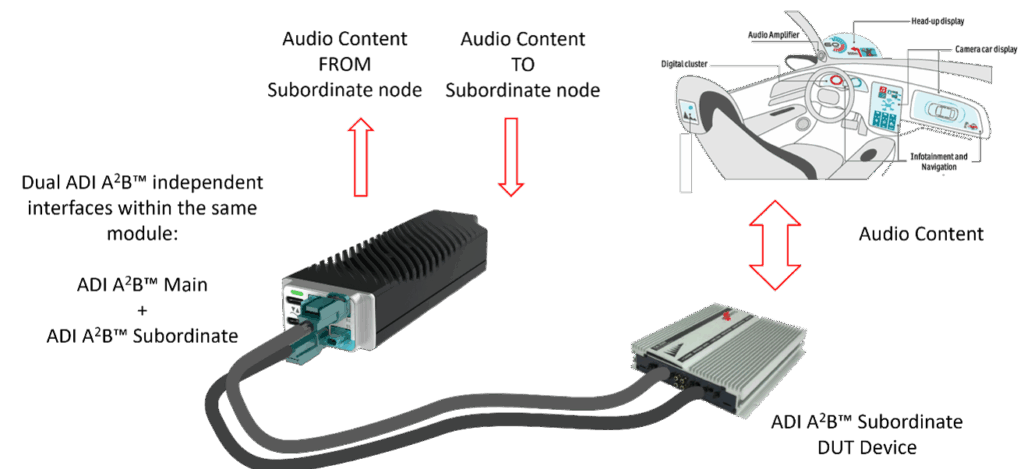

- USE CASE
Description
The Flexmedia XM A2BFRTX3 module is a Dual ADI AD2433 A2B® Audio Generator/Analyzer, specifically designed to analyze and generate audio data, according to
specifications, for validation, R&D and production test activity.
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |

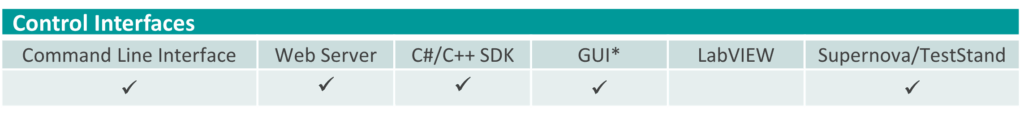

*Please note that the Graphical User Interface (GUI) is meant to have a quick hands-on experience of Flexmedia XM module main functions. Full chipset functionality access is guaranteed through Command Line Interface (CLI) programming as well as specific embedded scripting.
Flexmedia XM ADI A2B Generators and Analyzers – CLI
Flexmedia XM ADI A2B Generators and Analyzers – User Manual
