A2BFRTX2 | Dual ADI A2B™ Generator/Analyzer
• Two ADI A2B™ AD2428 interfaces independently configured as Main or Subordinate
• Up to 32 downstream and 32 upstream slots
• 7 independent internal and external audio sources
✓ two independent audio sources from file
✓quad internal programmable sinusoidal tones generation
• 4 independent audio sinks
• Network configuration import from .csv file (SigmaStudio® compatible)
• Fully programmable association between audio sources and slot position
• Fully programmable association between received slots and audio sinks
• Programmable sampling rates: 44.1 kHz, 48 kHz
• Embedded audio measurement processing (f0, P-P, RMS, THD, SINAD, time/FFT display)
• Waveform samples transfer to host, on host request
• Analog audio input/output (mono ADC and stereo DAC): real-time conversion from analog audio to ADI A2B™ (1 channel) and ADI A2B™ to analog audio (2 channels)
• Analog earphone-compatible USB type-C® I/O connectors
• Bidirectional sideband communication: embedded I2C
• Phantom power for connected Subordinate devices
• Load simulation for Subordinate interface
• Simple OS-agnostic command line interface
• Gigabit Ethernet control interface
• Configurable IP address (static or DHCP assigned)
• Power-over-Ethernet (PoE) power supply
- Description
- Additional information
- DOCUMENTATION

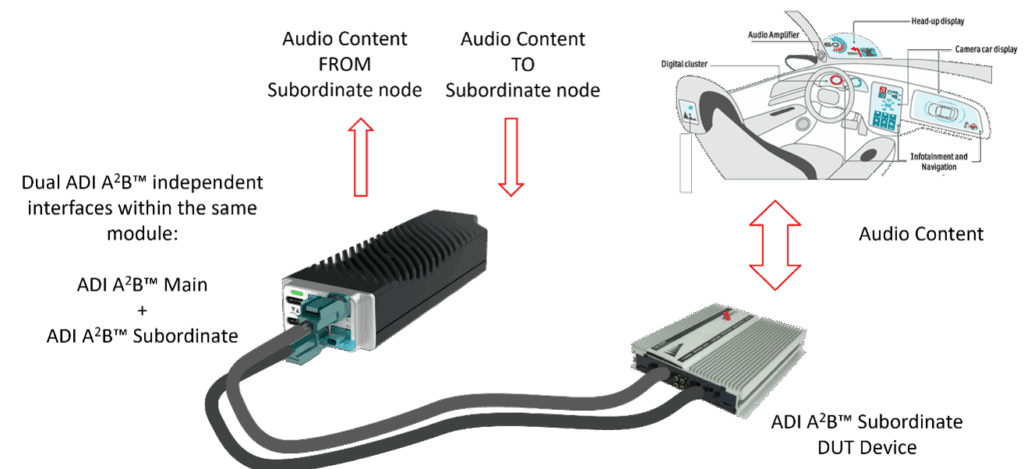

- USE CASE
Description
The Flexmedia XM A2BFRTX2 module is a Dual ADI A2B™ AD2428 Audio Generator/Analyzer, specifically designed to analyze and generate audio data, according to Dual ADI A2B™ specifications, for validation, R&D and production test activity.
Additional information
| Weight | 0,180 kg |
|---|---|
| Dimensions | 24 × 43 × 141 cm |

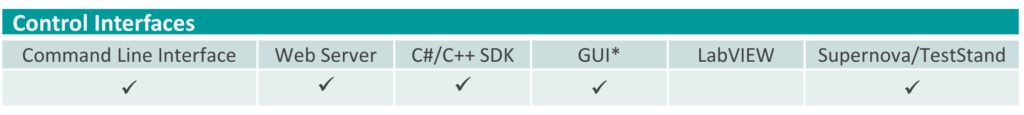

*Please note that the Graphical User Interface (GUI) is meant to have a quick hands-on experience of Flexmedia XM module main functions. Full chipset functionality access is guaranteed through Command Line Interface (CLI) programming as well as specific embedded scripting.
Flexmedia XM ADI A2B Generators and Analyzers – CLI
Flexmedia XM ADI A2B Generators and Analyzers – User Manual
Flexmedia XM A2B® Generators and Analyzers – CLI
